AUTOMATIC ROUNDING, CUTTING, PIN-INSERTING M/C

This machine combines the function of rounding, cutting and pin-inserting for making rim automatically.
Model : JTM-AUTO-01

Flow of Machine:
Aluminum Strips → Marking (optional) → Rounding → Cutting → Pin-offering (three rims at one time) → Pin-Inserting (One rim at one time) → Procedure completed.

Machine Spec:
●Auto strips feeder x 1 set
●Auto marking device x 1 set (Optional)
●Rounding machine x 1 set: Rollers adjusted by servo, rollers position memorized.
●Cutting machine x 1 set: Three rims cut at one time, cutting motor: 3HP, hydraulic motor: 1HP
●Pin-offering device x 1 set: Three rims at one time
●Pin-inserting machine x 1 set: One rim at one time, hydraulic motor: 3HP
●Rim collector x 1 set
●Can be connected to punching or drilling machine
●Operated by one man  (manpower saved.)
●CE certificated (Optional: Standard one)
●Including HMI, easy to operate and remove alarm
●Capacity: 6 pcs/ min

Related Products

3 ROLLERS BICYCLE RIM ROUNDING MACHINE

3 ROLLERS BICYCLE RIM ROUNDING MACHINE

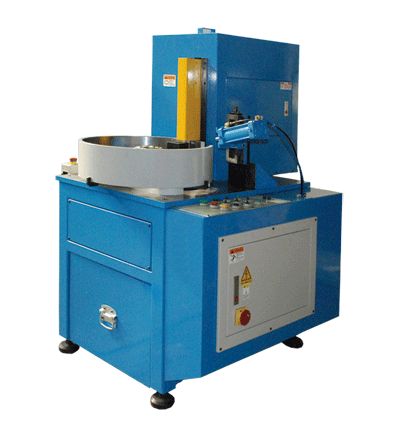

BICYCLE RIM CUTTING MACHINE

BICYCLE RIM CUTTING MACHINE

BICYCLE RIM PIN-INSERTING MACHINE

BICYCLE RIM PIN-INSERTING MACHINE

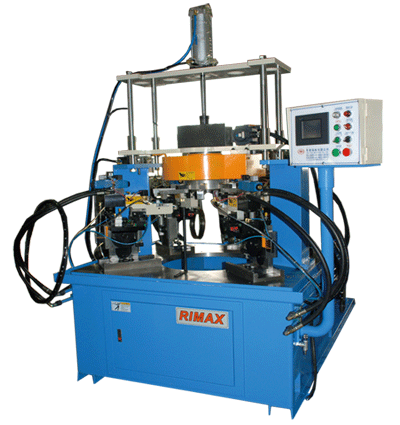

BICYCLE ALUMINUM DOUBLE WALL RIM PUNCHING MACHINE
